PRODUCTS DESCRIPTION

SCALABLE OPEN SYSTEM

While at the core of our solution is our clients, then our services, what glues these two is an enabling technology. One that is scalable and open, which allows for utmost interoperability, and protects our clients against vendor lock-in. What we are delivering is a comprehensive solution which can be defined as an augmented managed services offering built on top of a best of breed integrated system. We built our offering using the latest technology, to deliver a highly interoperable and scalable solution that uses open technologies.

This section takes you under the hood to show you how it all works and what products are responsible for delivering such high levels of interoperability.

Our solutions uses wired and wireless actuators and sensors, a ZigBee Mesh Network consisting of controllers, coordinators, and router, with EnOcean end points. ZigBee, EnOcean, Analog and Digital I/Os, Wired communication, and Webserver user interface are integrated by a Multipurpose manager.

LOCAL & REMOTE SUPERVISION

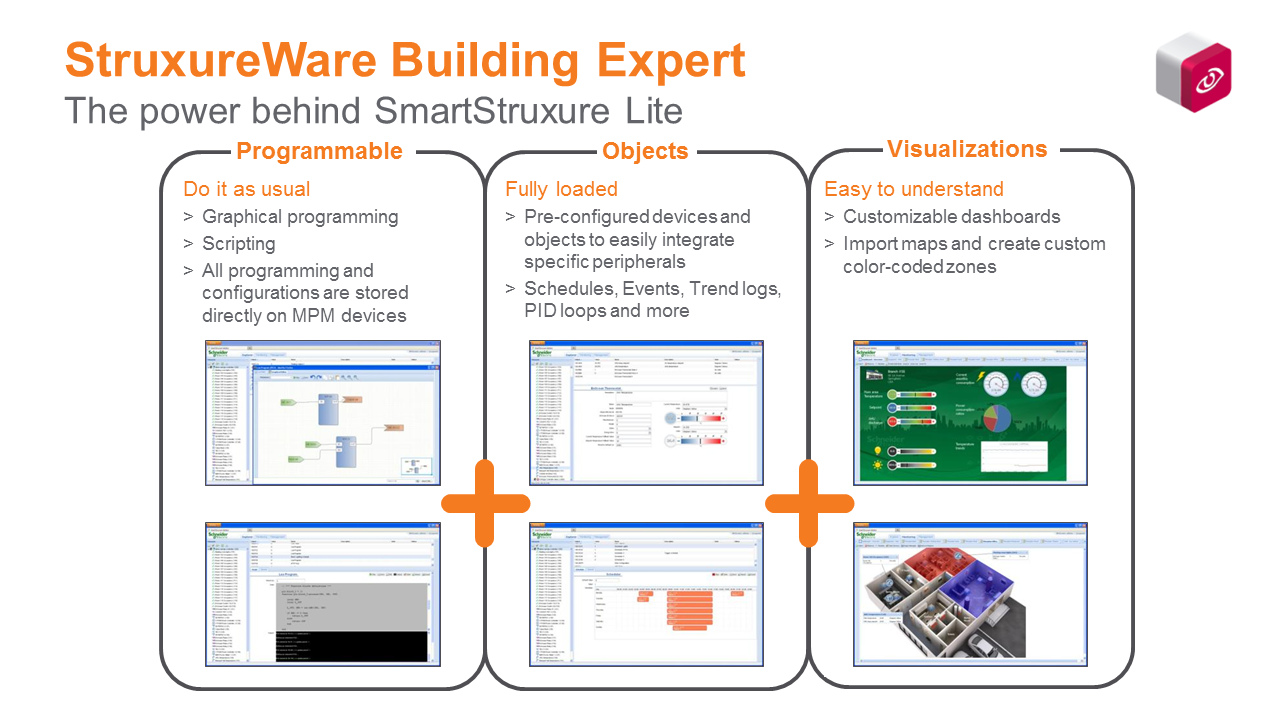

The combined system is called SmartStruxure Lite, and behind this is the StruxureWare Building Expert. A piece of software that allows programming the logic, user interface, and enables device integration.

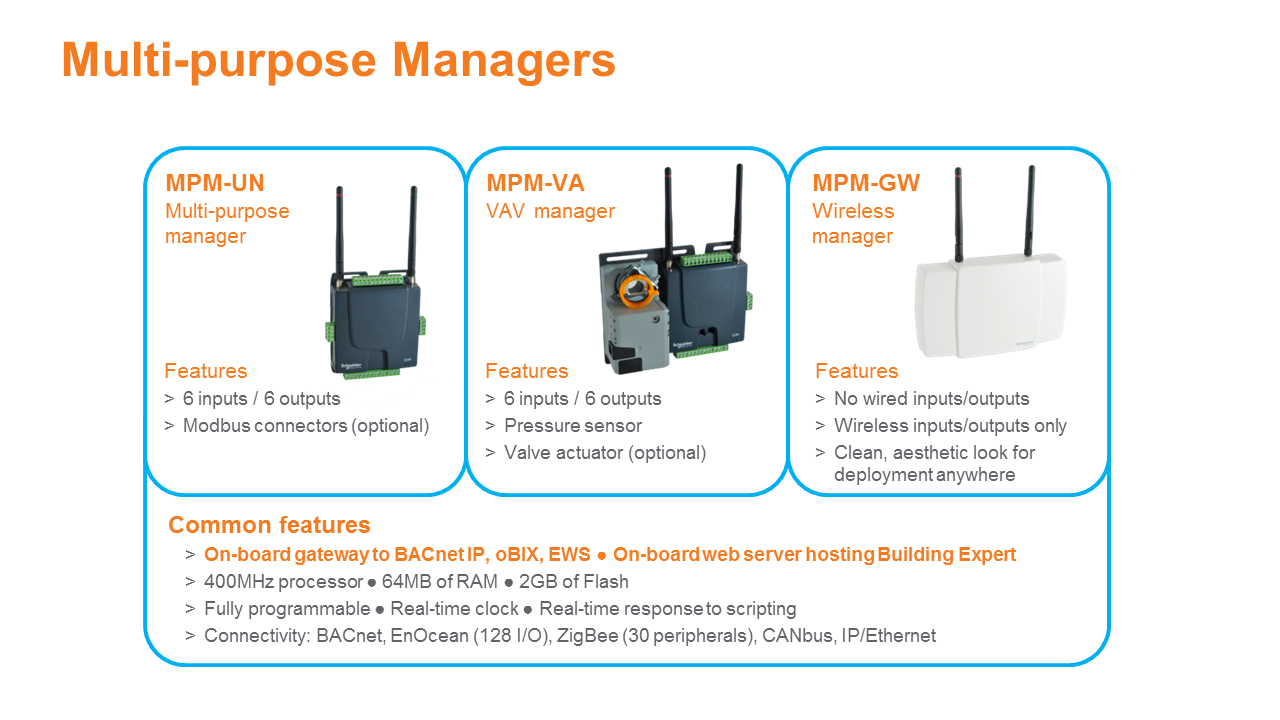

The hardware component that houses the Building Expert software is the Multipurpose Manager or MPM. As its name indicates, this device can serve as a router, coordinator, and a VAV manager.

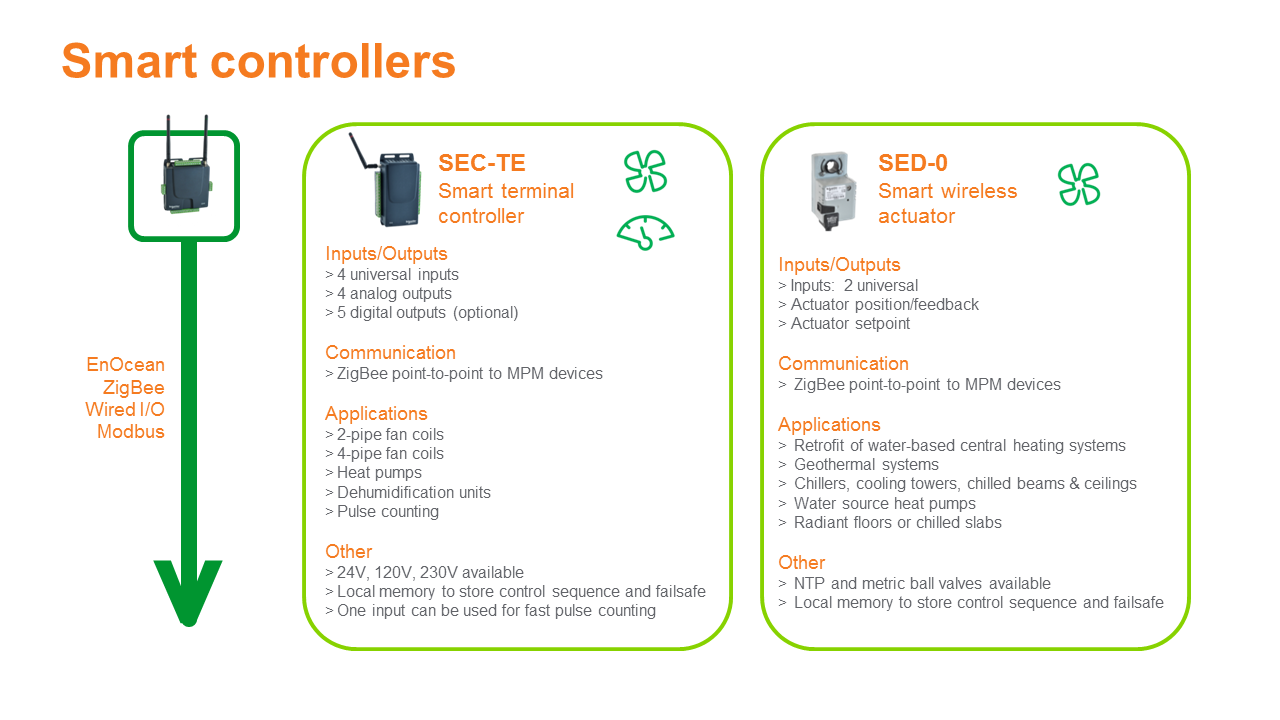

These MPMs communicate in ZigBee to HVAC Controllers such as the SEC-TE and SED-0. These devices are used in a variety of applications and offer 24V, 120V, and 230V control options.

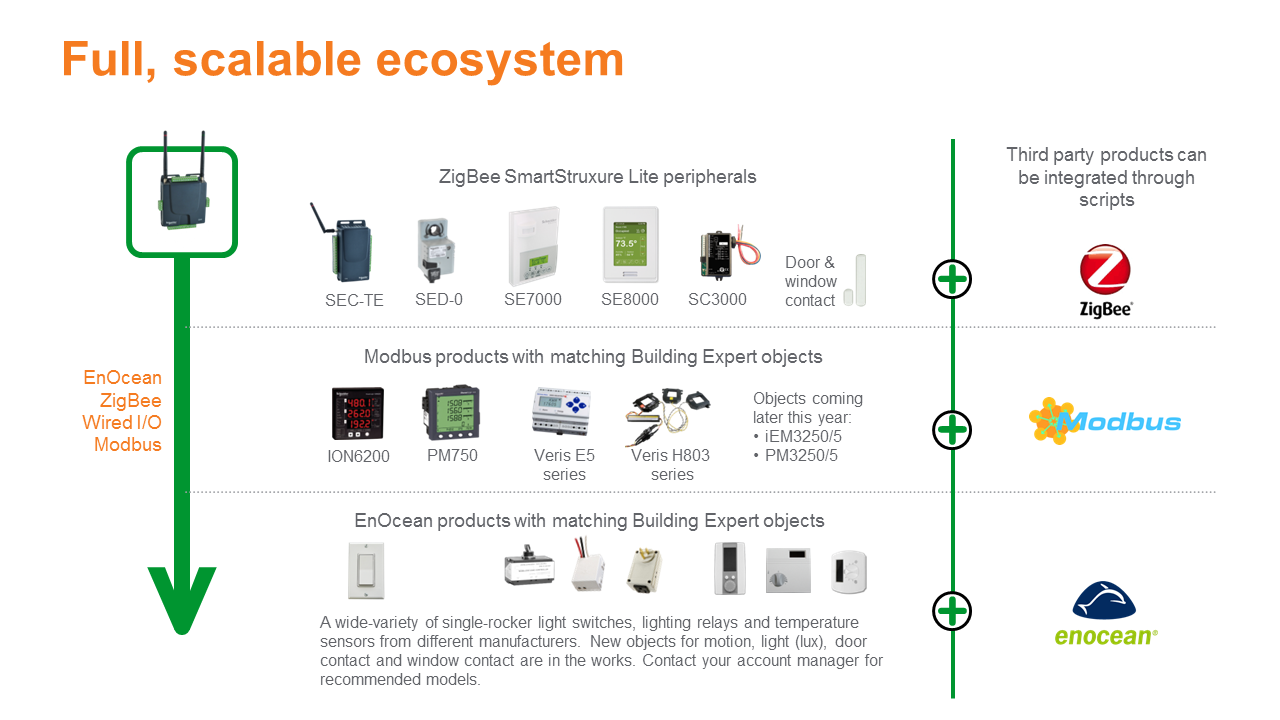

It's not just components, it's an entire ecosystem of interoperable devices, and an extremely scalable solution.

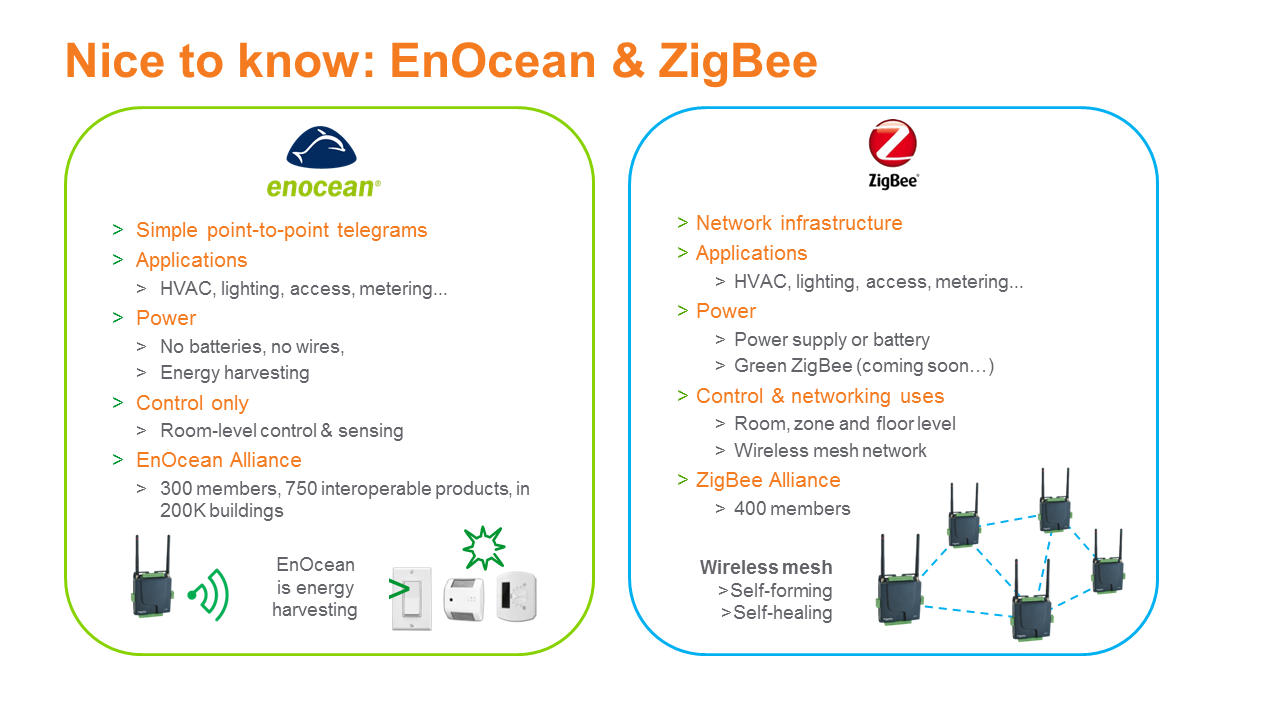

As you can see, we can support integrating EnOcean and Zigbee end points for increased interoperability.

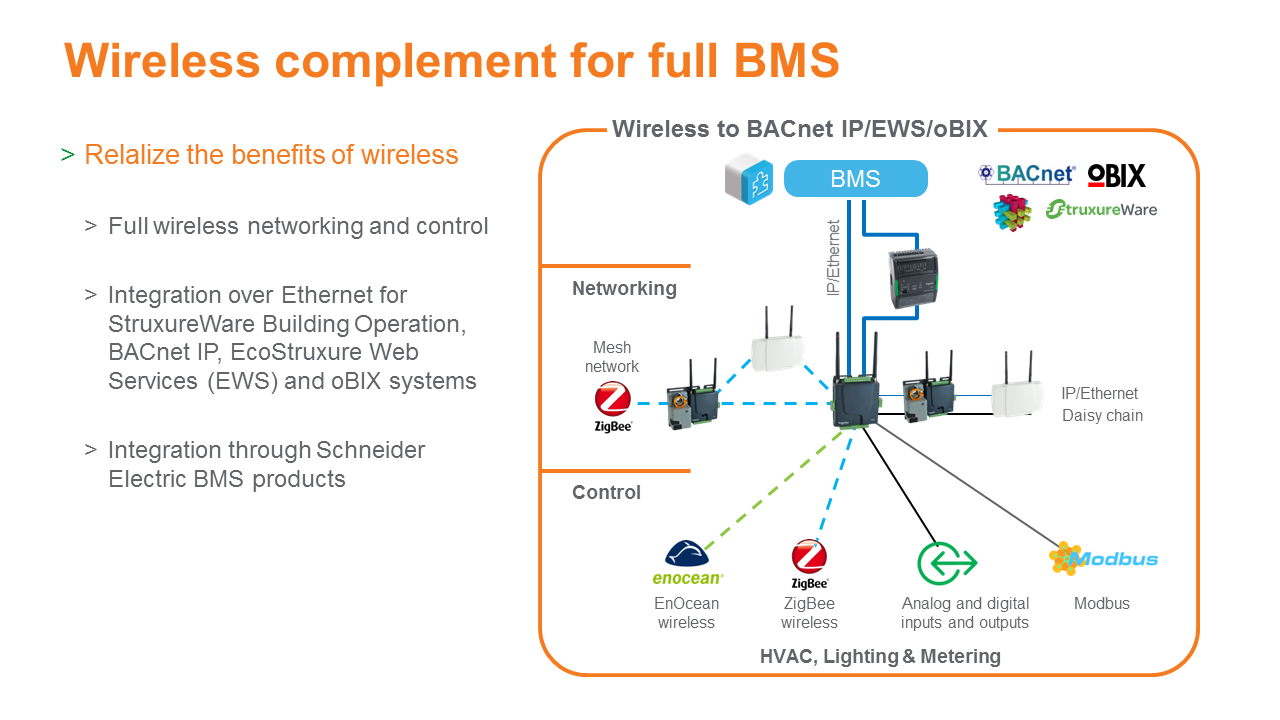

The system may be integrated into a larger Building Management System and Enterprise Servers using BACnet IP, EWS, and oBIX.

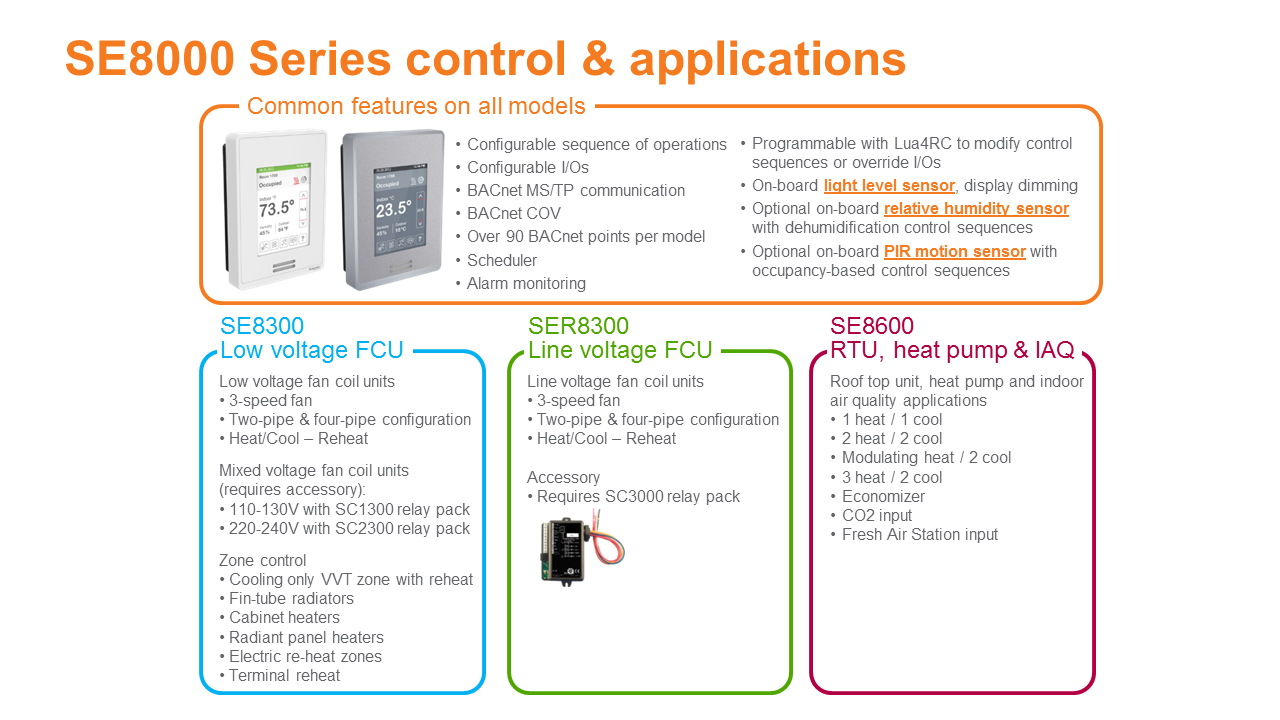

The climate control interface supports low and high voltage fan coil units, and other HVAC systems.

With the various language options, the various control functionality, e.g. lighting, blinds, lamp, make room and more, makes this the perfect product for hotel environments.
